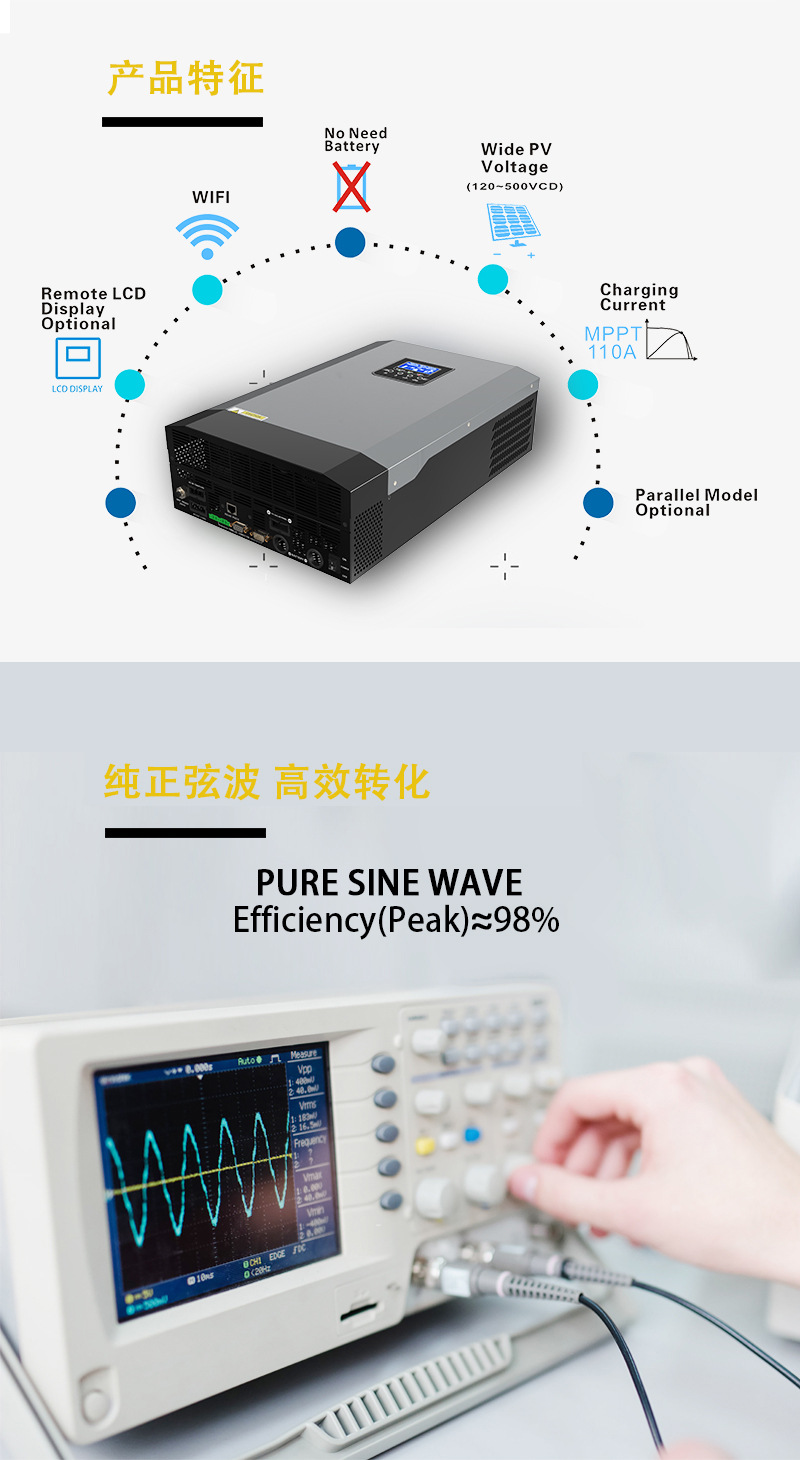

Product characteristics
Pure sine wave output
Output power factor 1.0

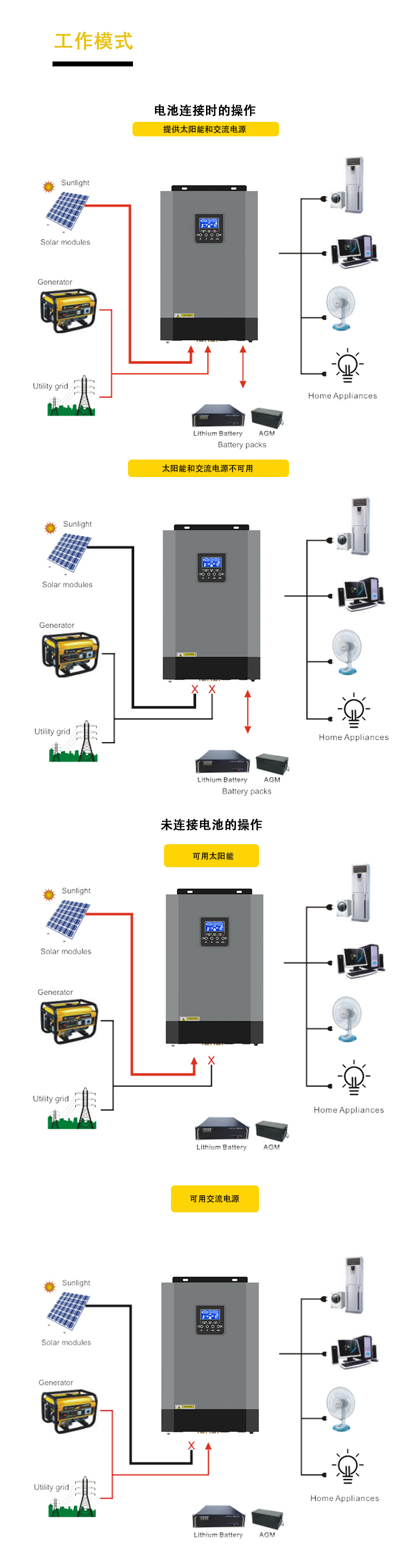

Priority for programmable power for photovoltaics, batteries or grids
User adjustable charging current and voltage
Wide PV input range (120VD-500VDC), 110A MPPT solar charging controller
Battery-free operation

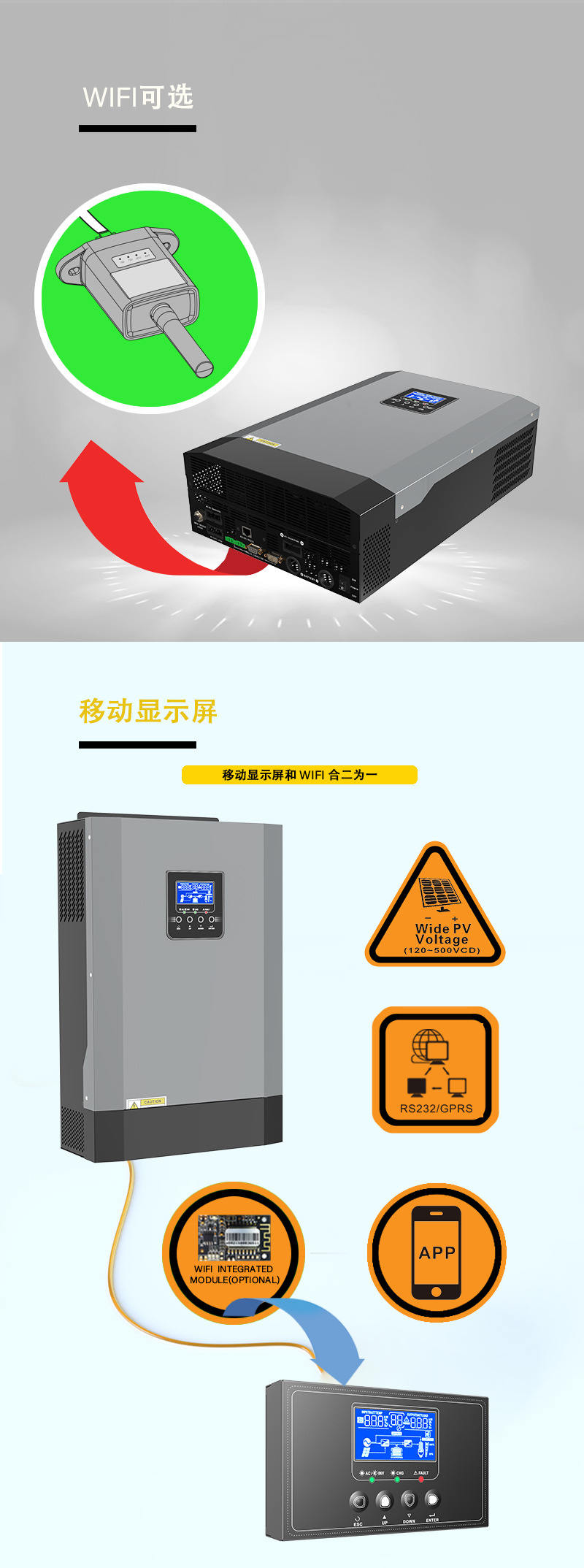

WIFI monitoring (optional)
Anti-aging kit for harsh environments (optional)
LCD remote control with 10m cable (optional)

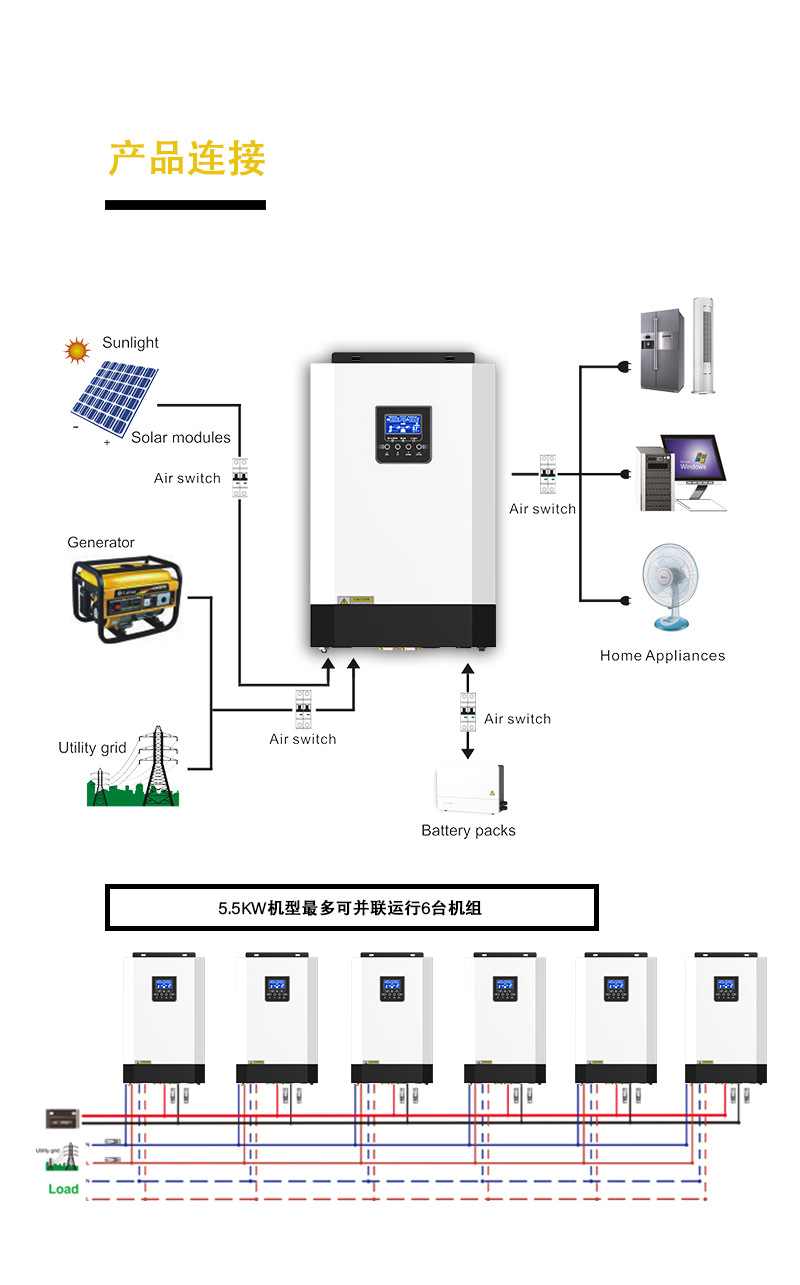

Photovoltaic and electricity complement each other
Used with lithium batteries

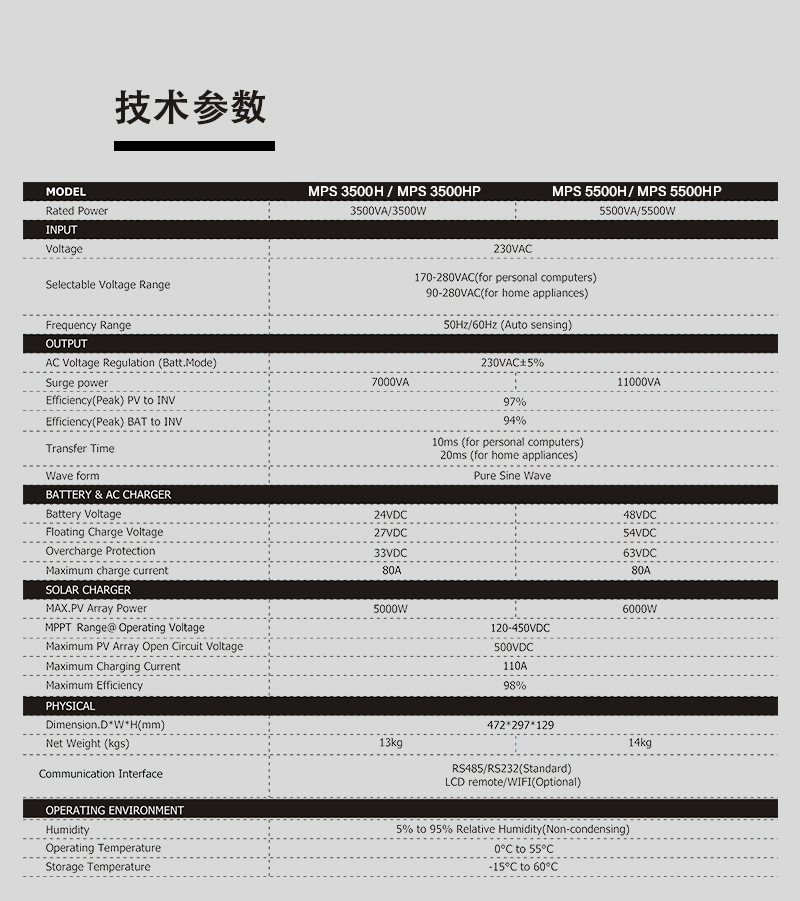

Technical parameter

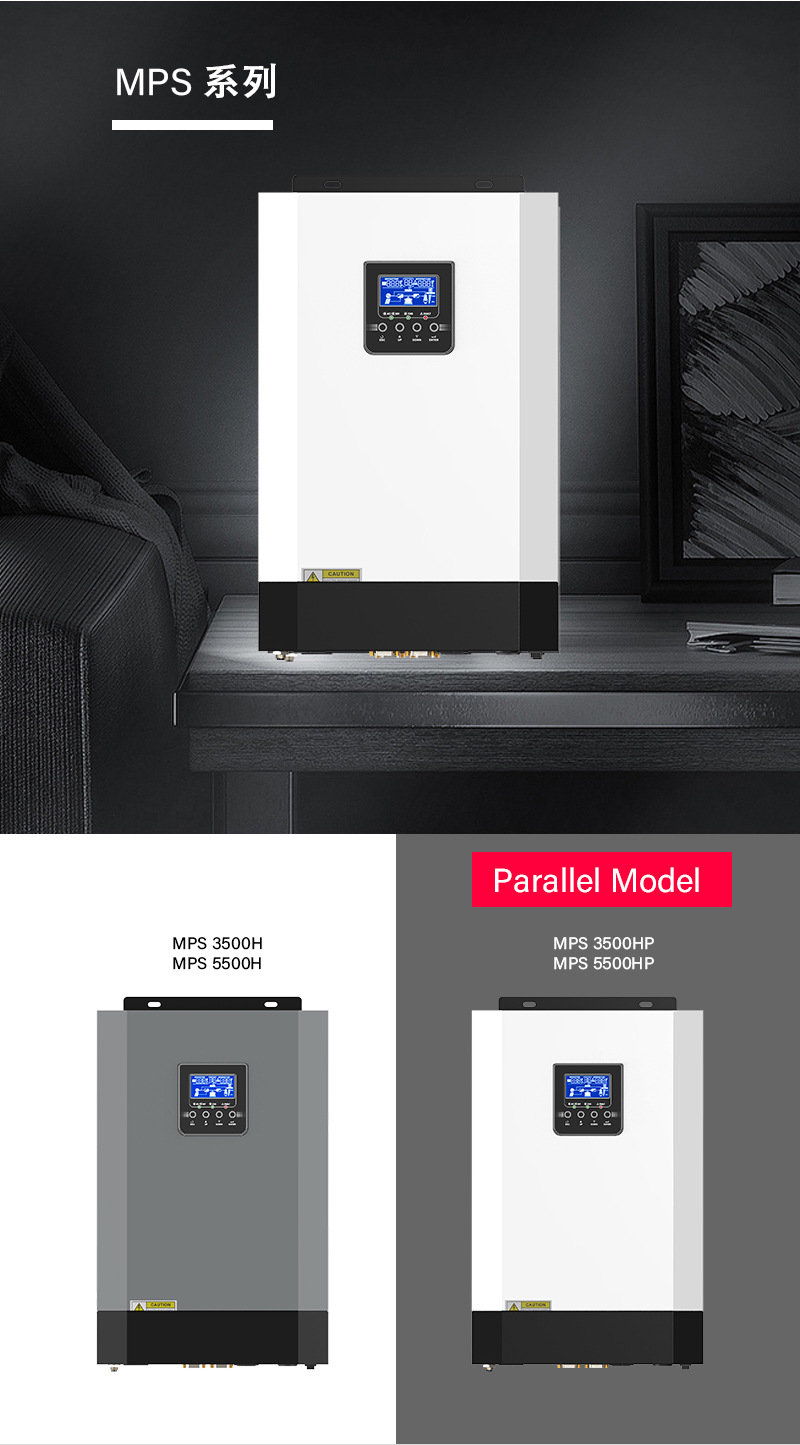

| Model number |
MPS-3500H |
MPS-5500H |
| Rated power |
3500VA/3500W |
5500VA/5500W |
| input |
| voltage |
230VAC |
| Optional voltage range |
170-280VAC (PC) 90-280VAC (Household Appliances) |
| Frequency range |
50Hz/60Hz (automatic sensing) |
| exportation |
| Ac Voltage regulation (Battery mode) |
230VAC±5% |
| Surge power |
7000VA |
11000VA |
| Efficiency (peak) PV to INV |
97% |
| Efficiency (peak) BAT compared to INV |
94% |
| Transmission time |
10ms (PC) 20ms (Home appliances) |
| Wave form |
Pure sine wave |
| Battery and AC charger |
| Battery voltage |
24VDC |
48VDC |
| Floating charge voltage |
27VDC |
54VDC |
| Overcharge protection |
33VDC |
63VDC |
| Maximum charging current |
80A |
80A |
| Solar charger |
| Recommended photovoltaic array power |
5000W |
6000W |
| MPPT range @ Operating voltage |
120-450VDC |
| MAX Open circuit voltage of the photovoltaic array |
500VDC |
| MAX charging current |
110A |
| Conversion efficiency |
98% |
| physics |
| Dimension Length * Width * Height (mm) |
472 * 297 * 129 |
| Net weight (kg) |
13kg |
14kg |
| Communication interface |
RS485/RS232 (Standard) WIFI (optional) |
| Operating environment |
| humidness |
5% to 95% relative humidity (non-condensing) |
| Operating temperature |
0℃ to 55℃ |
| Storage temperature |
-15℃ to 60℃ |
